Smart Thermostats Manufacturer

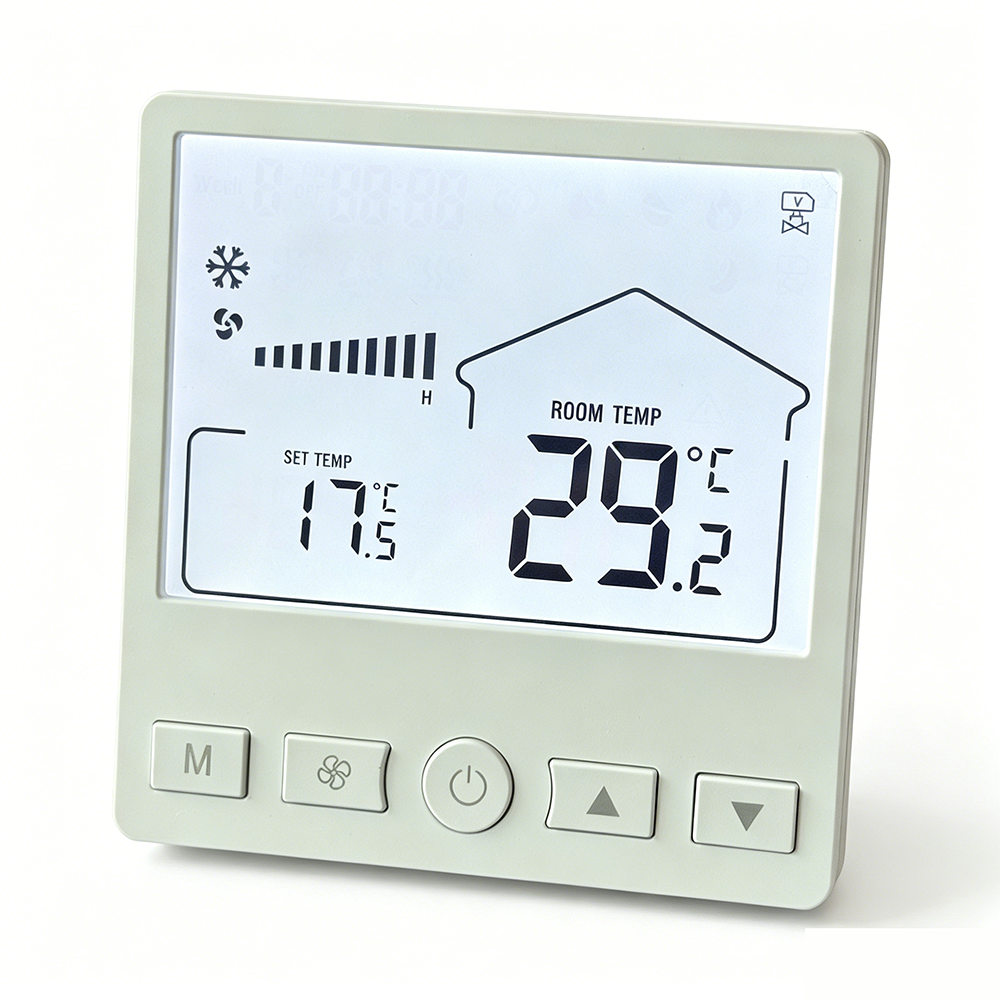

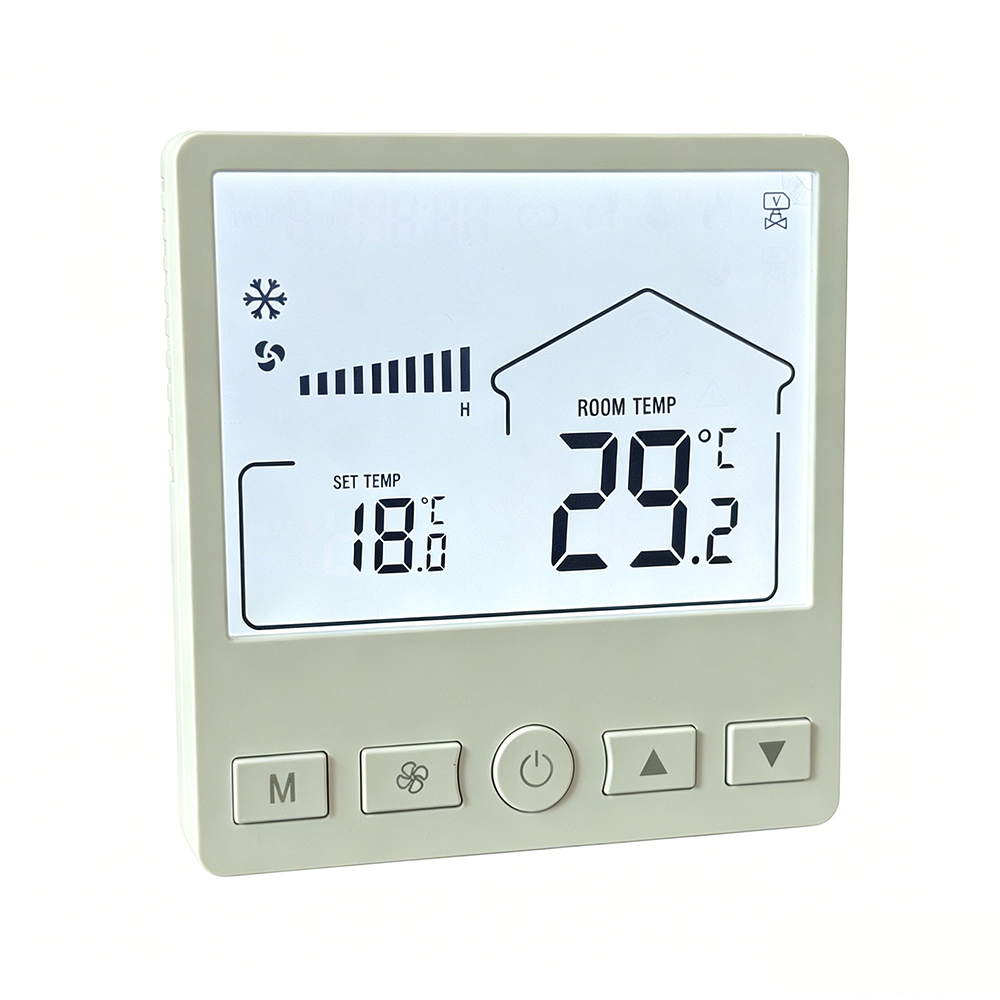

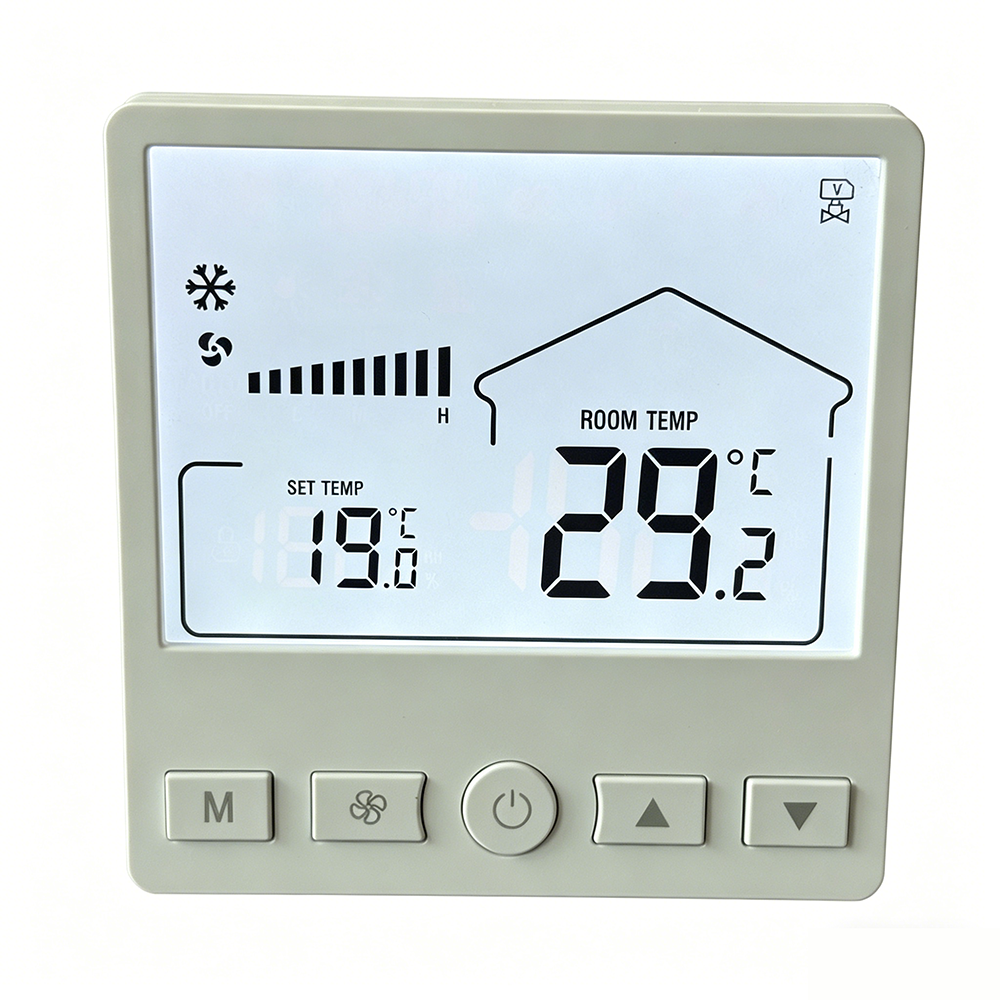

705 RS-485 Smart WiFi Fan Coil Unit Thermostat with Alexa & Google Assistant
705 RS-485 Smart WiFi Fan Coil Unit Thermostat with Alexa & Google Assistant
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Overview

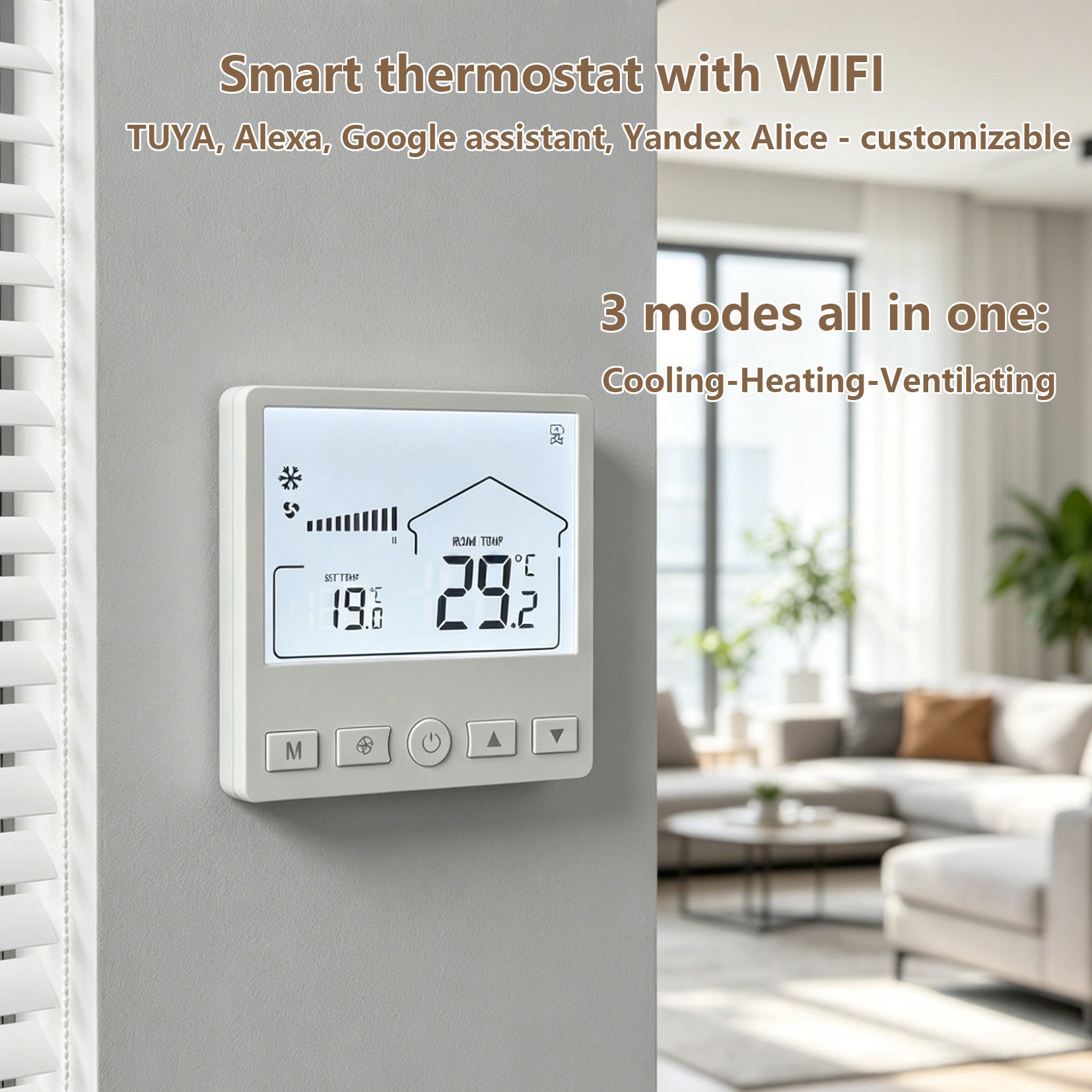

This is a RS-485 Smart WiFi Fan Coil Unit Thermostat with WiFi and smart control. It supports cooling, heating, ventilation and floor heating modes, featuring high-precision temperature control, LCD display, child lock, timer and 485 communication. This RS-485 Smart WiFi Fan Coil Unit Thermostat is compatible with Tuya APP, Alexa and Google Assistant, it enables mobile and voice control for intelligent and energy-saving temperature management in homes, hotels and offices.
Key Features
- ✓2 pipes , 1ch single stage, cooling or heating & ventilation for versatile use
- ✓Built-in WiFi & RS-485 communication for remote & centralized control
- ✓Compatible with Tuya, Alexa, Google Assistant for voice control
- ✓High-precision NTC temperature sensing with ±1℃ control accuracy
- ✓Child lock, timing, auto fan speed and multiple safety protections
Technical Specifications
| Temperature sensor | NTC |
| thermistor control accuracy | 1C |
| Temperature setting | 05 |
| Display range | 0 ~ 50°C |
| Working environment | 0 45°C |
| Display | LCD |
| Humidity | 5 95% RH |
| Power supply voltage | AC 180 |
| Power consumption | < 1W |
| Load power | 3A K 200W, 10A < 1000W. |
| Terminal | 2*1. 5mm or 1*2. 5mm conductor. |
| Shell | PC+ABS flame retardant |

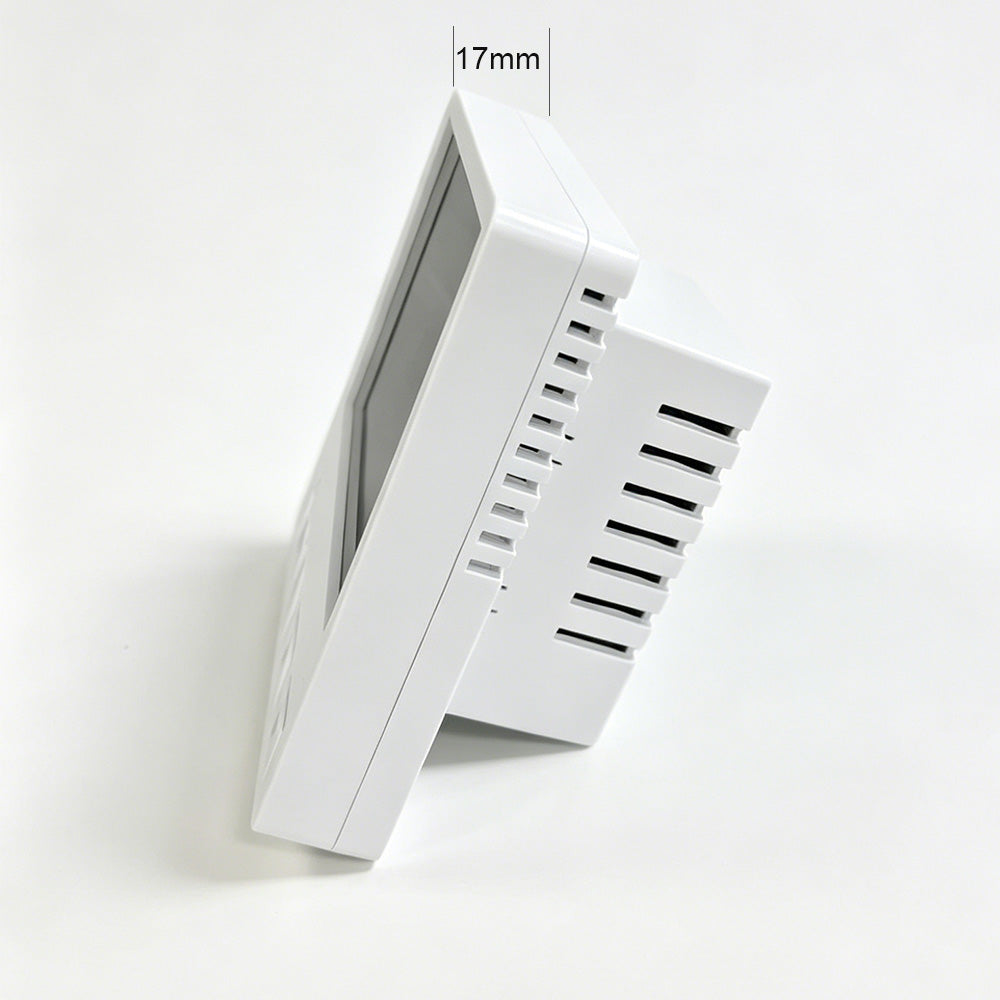

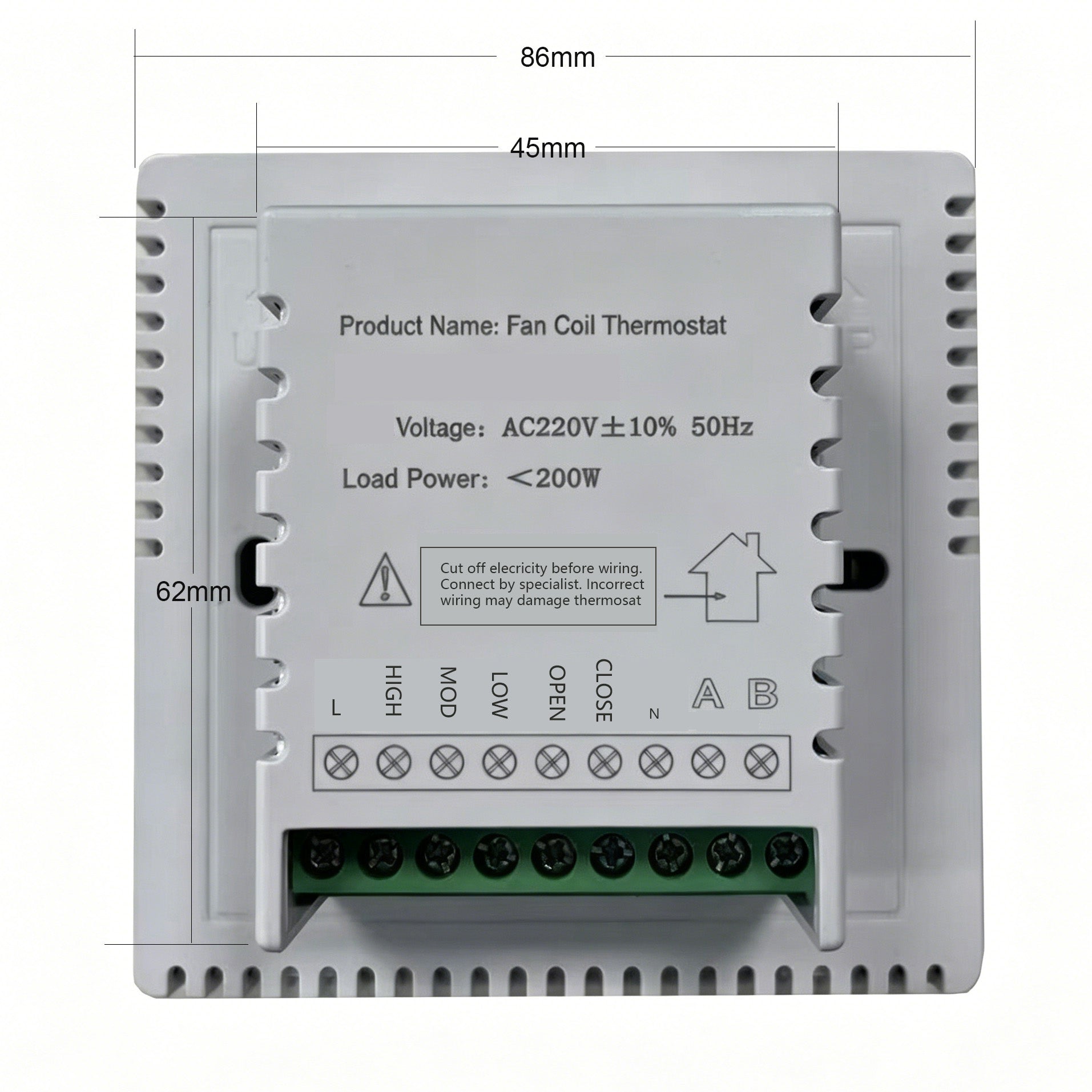

| Overall dimensions | 86*86*17mm (width * height |
| Installation hole spacing | 60mm (standard) |
