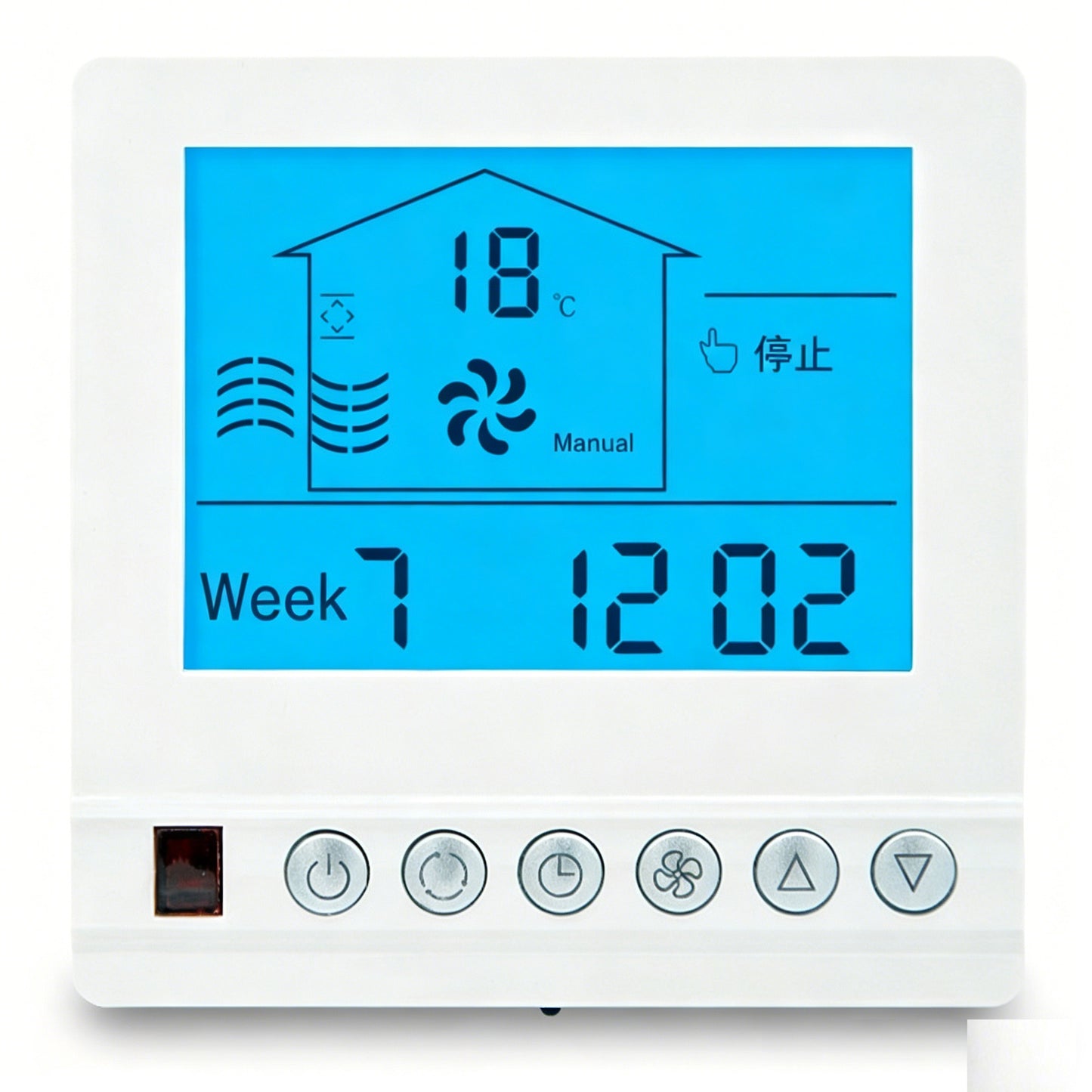

807 LCD 3-speed / 2-speed Fan Speed Control Panel for Ventilation & Fresh Air System Controller

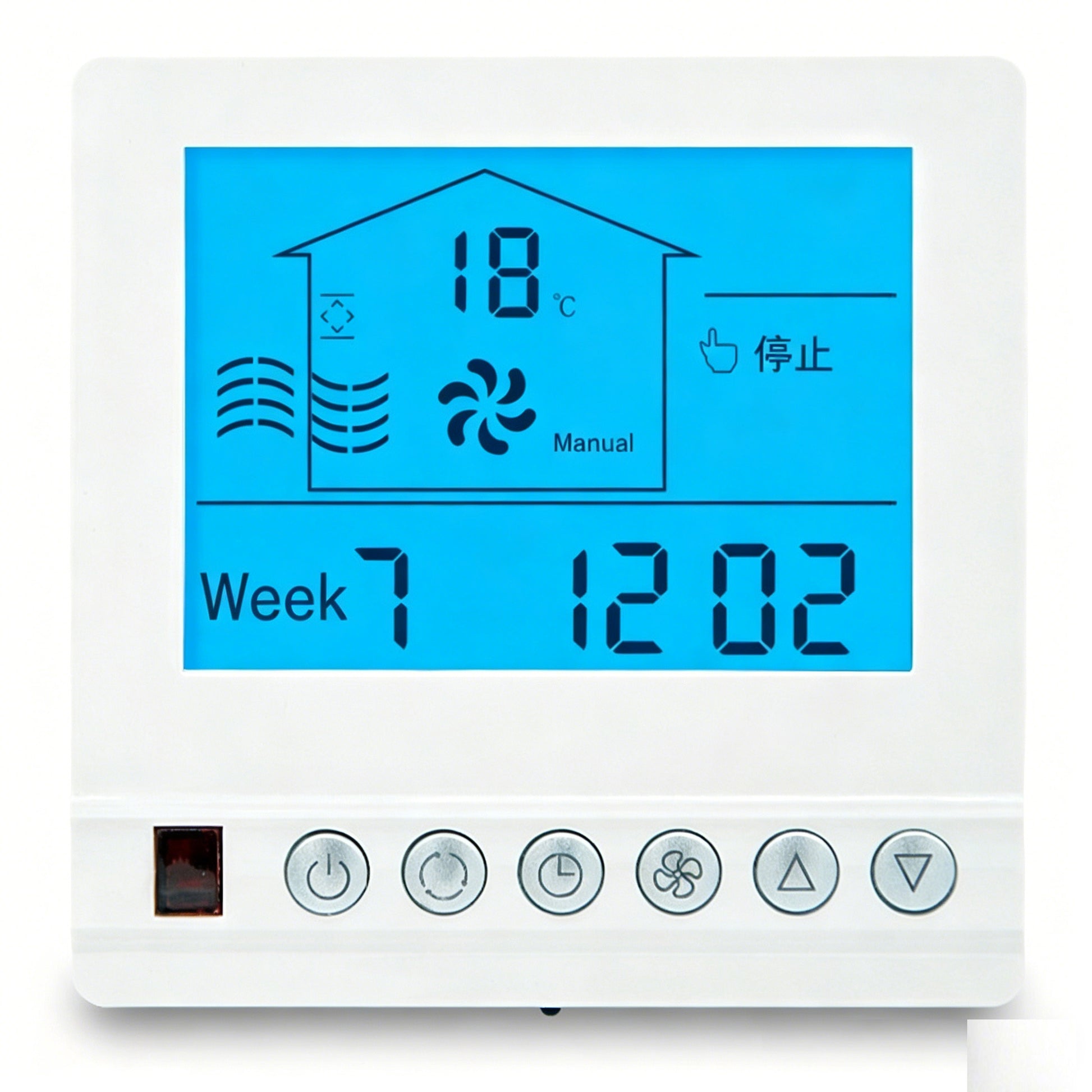

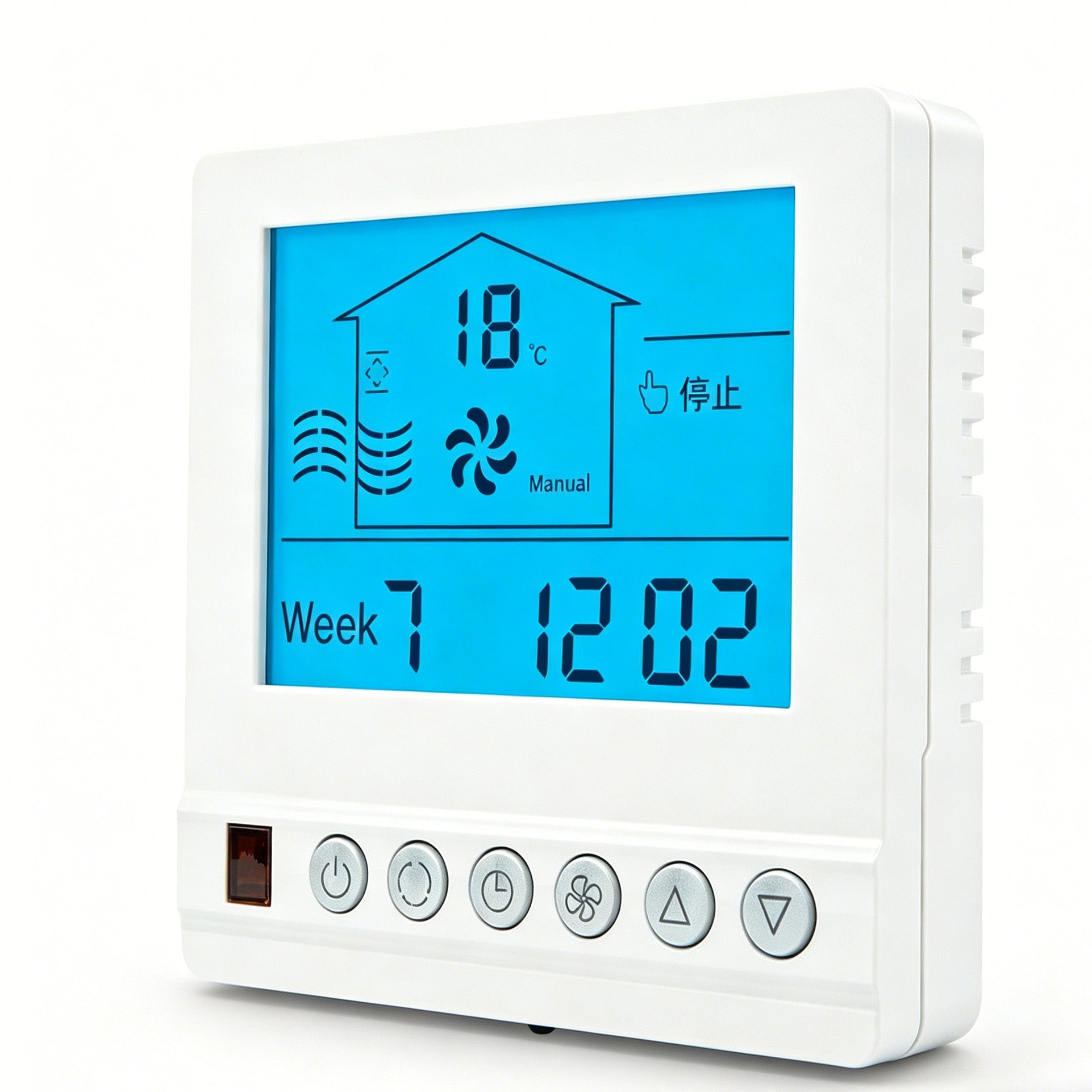

This product is applied to the temperature control of water system or windsystem. Through the ratio of the set temperature of the ambient temperatureAs a result, the working conditions of the fan coil and electric valve,electric ball valve or air valve at the end of the air conditioning systemare control led to achieve the purpose of adjusting the ambient temperature.comfort and energy saving.Temperature controller adopts microcomputer control technology, large liquid Crystal display screen, elegant design, convenient and easy to use,heating and cooling modes and settings can be se lected through buttons.The required indoor temperature. This product also supports the scheduled on/off function, which can realize the scheduled on/off task in different timeperiods seven days a week.

SPECS:

Senor: NTC thermal resistor
Precision: +1°C
Temp-setting:05~35°C
indication range: 0~50"C
working environment: 0~45°C
display: LCD
Humidity:5~95%RH
voltage:AC220V + 10%,50/60Hz
Self-consuming power:< 1W
load power:3A:K 200W / 10A:<1000W

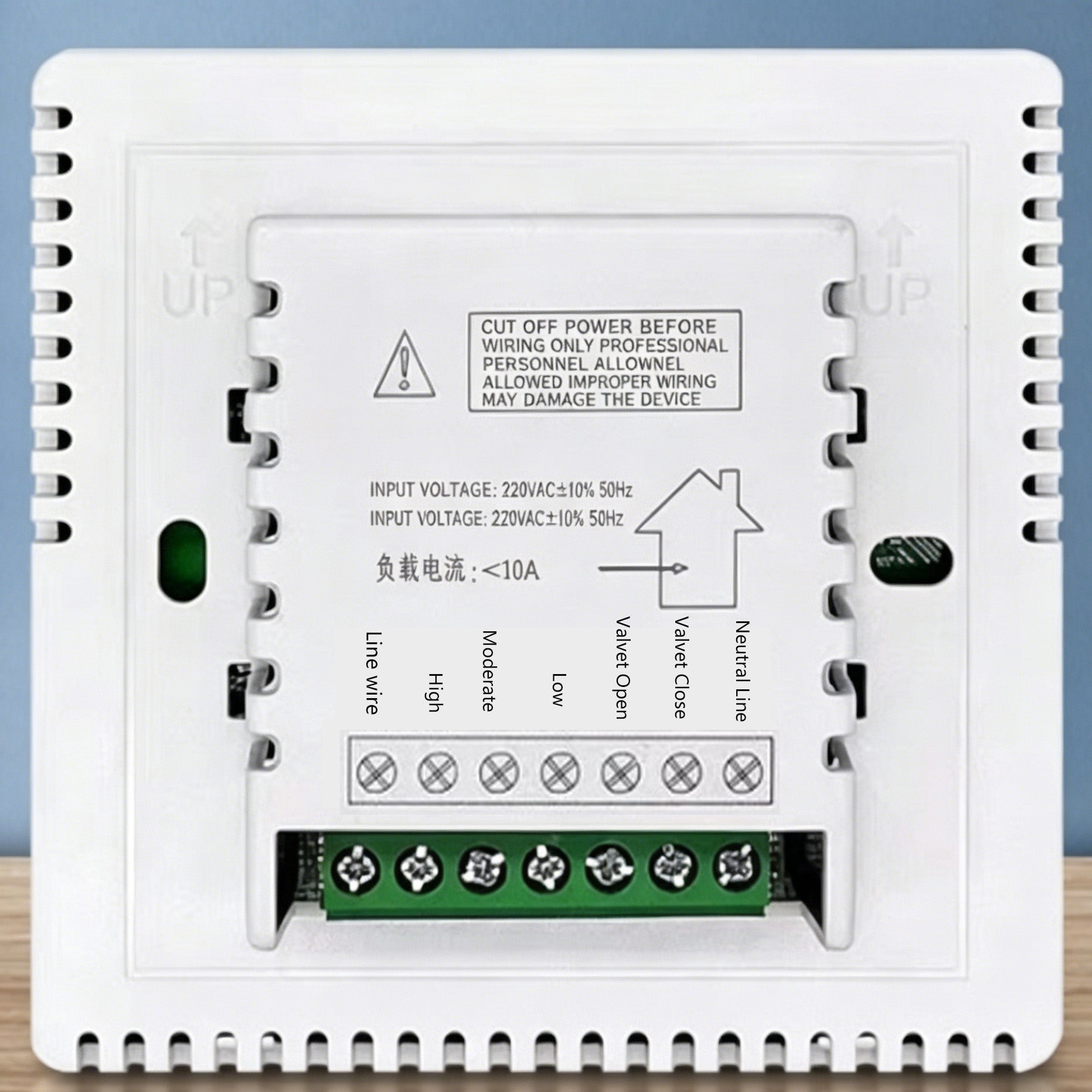

wiring: Able to connect 2*1. 5mm or 1*2.5mm wires.
shell: PC+ABS flame retardant
dimension:86*86*13mm (W* H * T)
Installation hole spacing: 60mm (standard)
(No condensation)
